GAT562 30S Mesh Kit
Sale price
$89.99
Regular price $99.99
PRODUCT INFORMATION
Explore the details
Technical information to help you evaluate this product for your project.
Overview

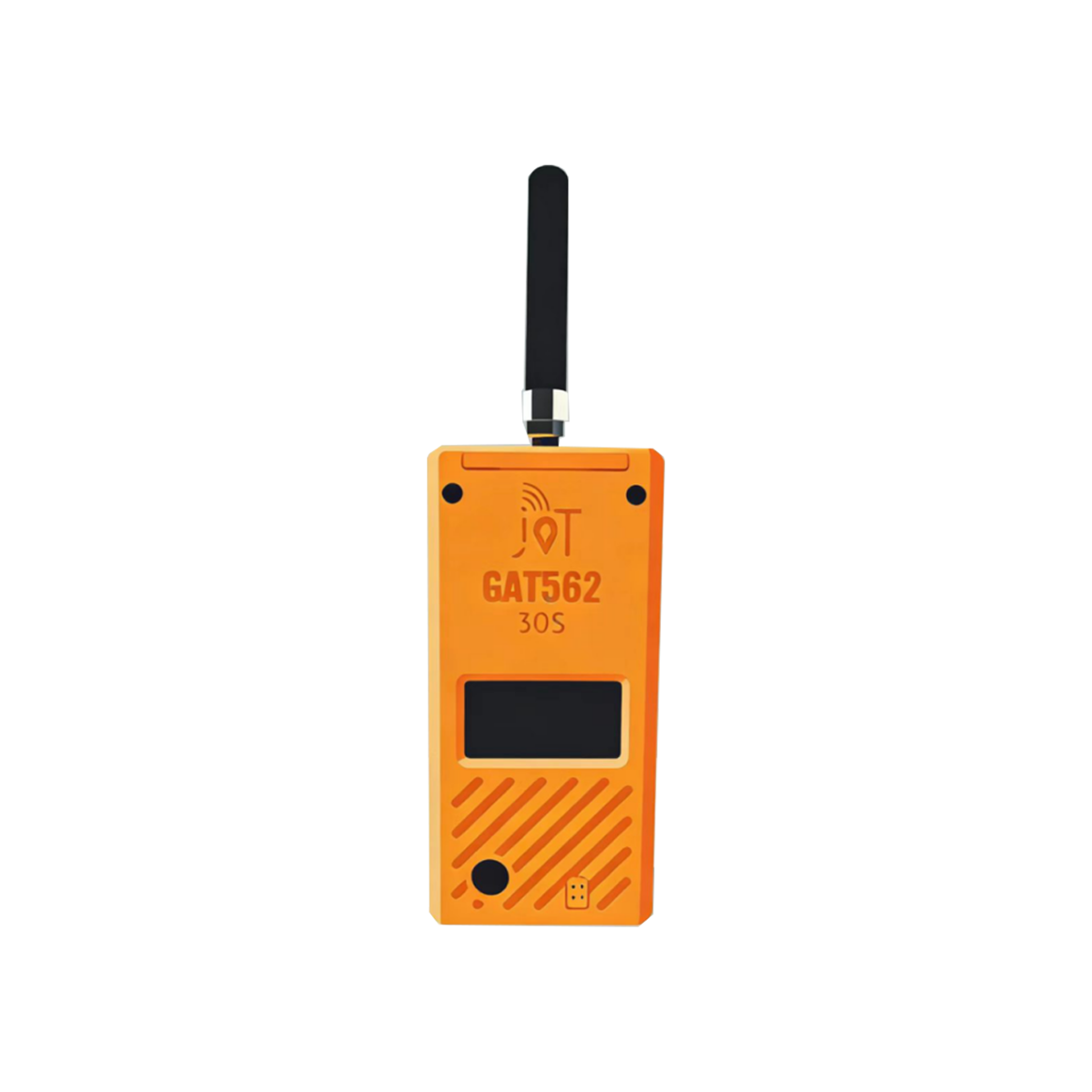

Ready-to-use high-power mesh kit with GNSS, joystick messaging and replaceable batteries.
Features
01
Joystick controls for preset messages and custom text using an on-screen keyboard; UI version 2.7 supports Chinese and English
02
Integrated GAT562 30S Mesh Module
03
Integrated Quectel L76K GNSS module
04
Power slide switch and user button
05
Built-in Bluetooth and GNSS antennas
06
Dual 18650 battery compartment for easy battery replacement
Specifications
| Model | GAT562 30S Mesh Kit |
|---|---|
| Maximum transmit power | 30 dBm+ |
| Display | 1.3-inch OLED, 128 × 64 pixels |
| External antenna | 2.0 dBi rubber antenna |
| Dimensions | 95 × 48 × 35 mm, excluding antenna length |
| Weight without batteries | 95 g plus the small rubber antenna |
| Weight with accessories | 202 g with small and large rubber antennas and two 18650 batteries |
| Recommended users | Users seeking a ready-to-use device |
Applications
- Portable and wearable use
